What is Magnetic Rope Testing (MRT)?
Magnetic Rope Testing (MRT) via EMAG (Electro-Magnetic Acoustic-Guided) is a non-destructive testing (NDT) method used to inspect and evaluate the condition of wire ropes, commonly used in various industrial applications like cranes, hoists, lifts, mining equipment, and suspension systems. The method utilizes electromagnetic (EMAG) technology to detect defects and structural damage in the rope without the need for physical contact or cutting into the rope.
MRT is not totally replacing the visual inspection of rope process. It is important to focus on the meaning of “visible”, which strongly depends on the inspection conditions, grease, speed, operator’s attention. For external defect an MRT is not mandatory, but it is the only tool that can provide a quick and accurate assessment of whole rope conditions.

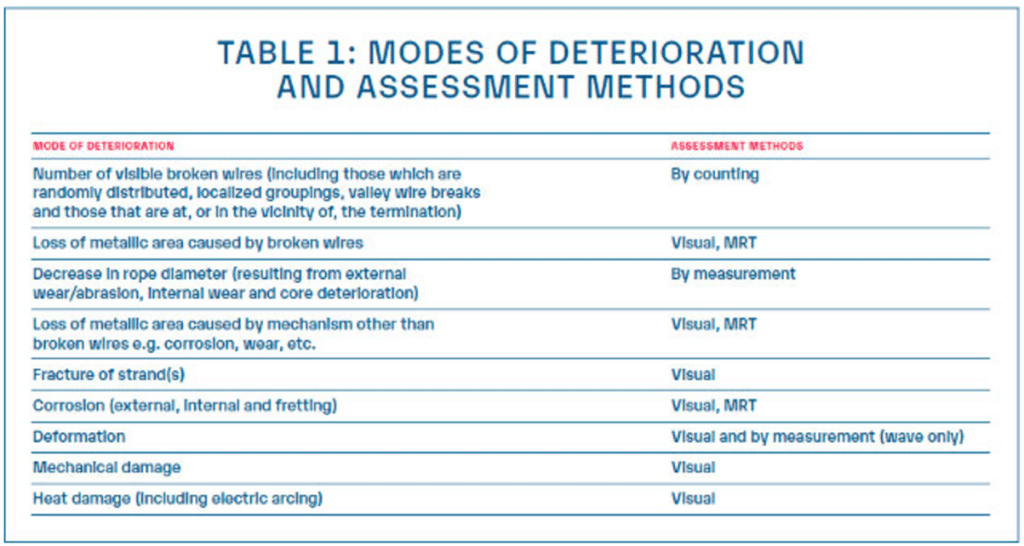

For internal defects, the situation changes. MRT is the only method reported in standard (EN12927, ISO4309). The standard ISO 4309 states the assessment method for any type of defect that can occur on a rope, Table 1 lists the more common modes of deterioration and whether each can be readily quantified or needs to be subjectively assessed by the competent person.
What are the benefits of Magnetic Rope Testing (MRT) via EMAG?
- Non-Destructive Testing (NDT): MRT does not damage the rope, which means it can be inspected without affecting its integrity or requiring downtime for replacement.
- Real-Time Results: The system provides immediate feedback, allowing operators and maintenance teams to quickly assess the rope’s condition and take necessary actions.
- Detailed Inspections: EMAG can detect a wide range of issues, including broken wires, corrosion, wear, fatigue, and other defects that might not be visible during a visual inspection.
- Increased Safety: Regular MRT inspections help detect potential issues early, reducing the risk of rope failure, which could lead to accidents or equipment downtime.
- Cost-Effective: Since it is non-invasive, MRT can save on the cost of replacing ropes prematurely and reduce downtime associated with other testing methods.
- Longer Rope Life: By detecting issues early and addressing them promptly, MRT can contribute to extending the lifespan of wire ropes.
What types of defects can MRT detect in wire ropes?
MRT using EMAG can detect a wide variety of defects in wire ropes, including:
-
- Broken Wires: A key indicator of rope fatigue, broken wires can occur due to excessive loading or poor handling.
-
- Corrosion: Internal or external corrosion caused by environmental factors, such as exposure to moisture, chemicals, or saltwater, can weaken the rope.
-
- Wear and Abrasions: Damage to the rope from rubbing against surfaces, friction, or poor storage conditions.
-
- Fatigue: Progressive damage to the rope material from repeated cycles of stress and tension.
-
- Indentations or Abrasions: Marks or gouges caused by external factors, such as contact with rough surfaces or equipment.
-
- Internal Damage: Damage not visible on the surface, such as strand breaks or internal fatigue, which can be detected using magnetic field disruptions.
How can I get Magnetic Rope Testing via EMAG?
To get MRT testing for your wire ropes, you can reach out to a qualified provider who specializes in non-destructive testing (NDT) services, including MRT via EMAG. Look for a provider with certified technicians and advanced EMAG testing equipment. The process typically involves:
- Initial Consultation: To assess the specific requirements of your ropes and equipment.
- On-Site Testing: Technicians will perform MRT testing on-site at your facility or installation.
- Data Analysis: The collected data is analyzed and presented in a detailed report outlining any defects or issues identified during the test.

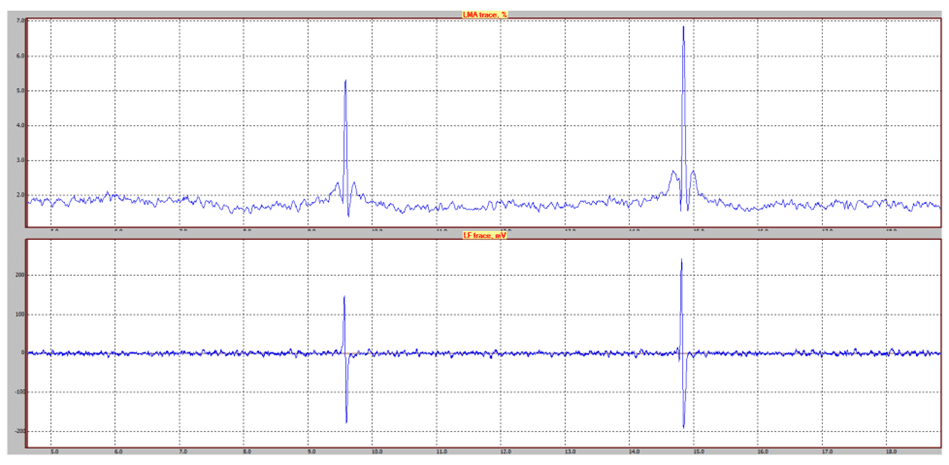

Example of detection broken wires.

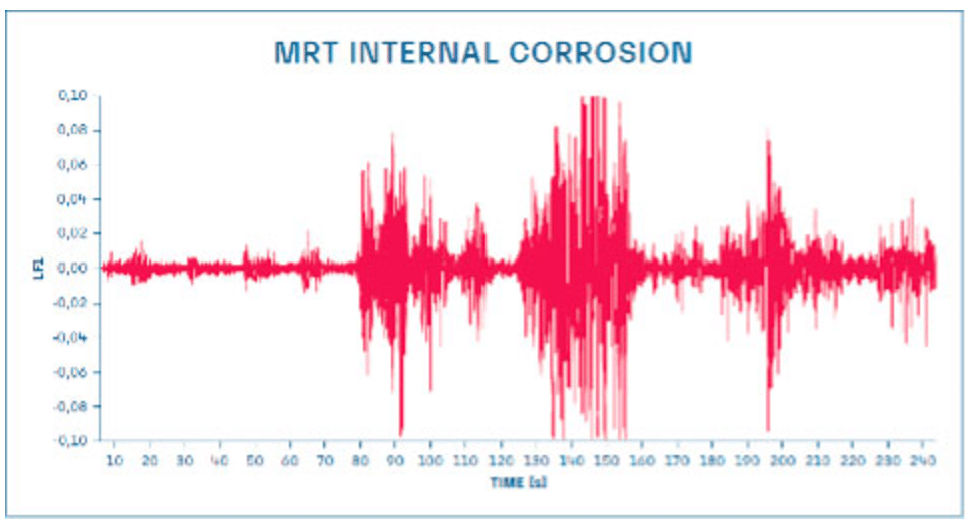

Example of detection internal corrosion wires.

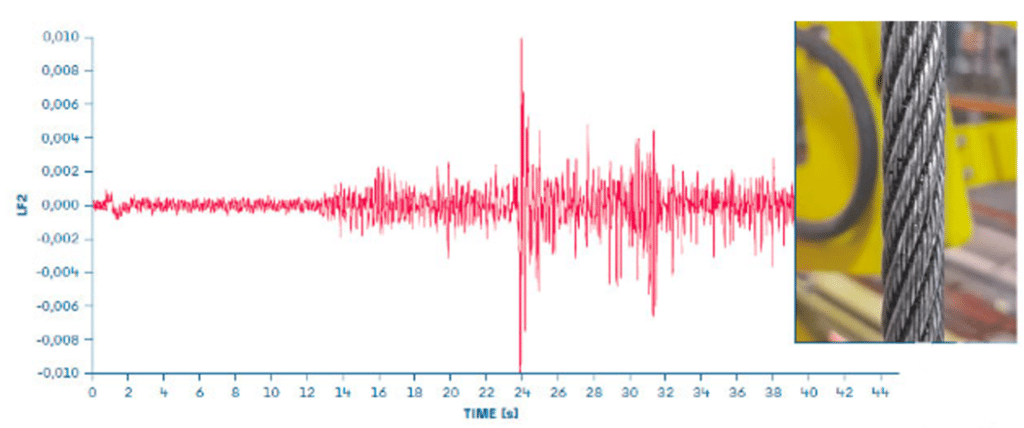

Example of rope containing defects.
