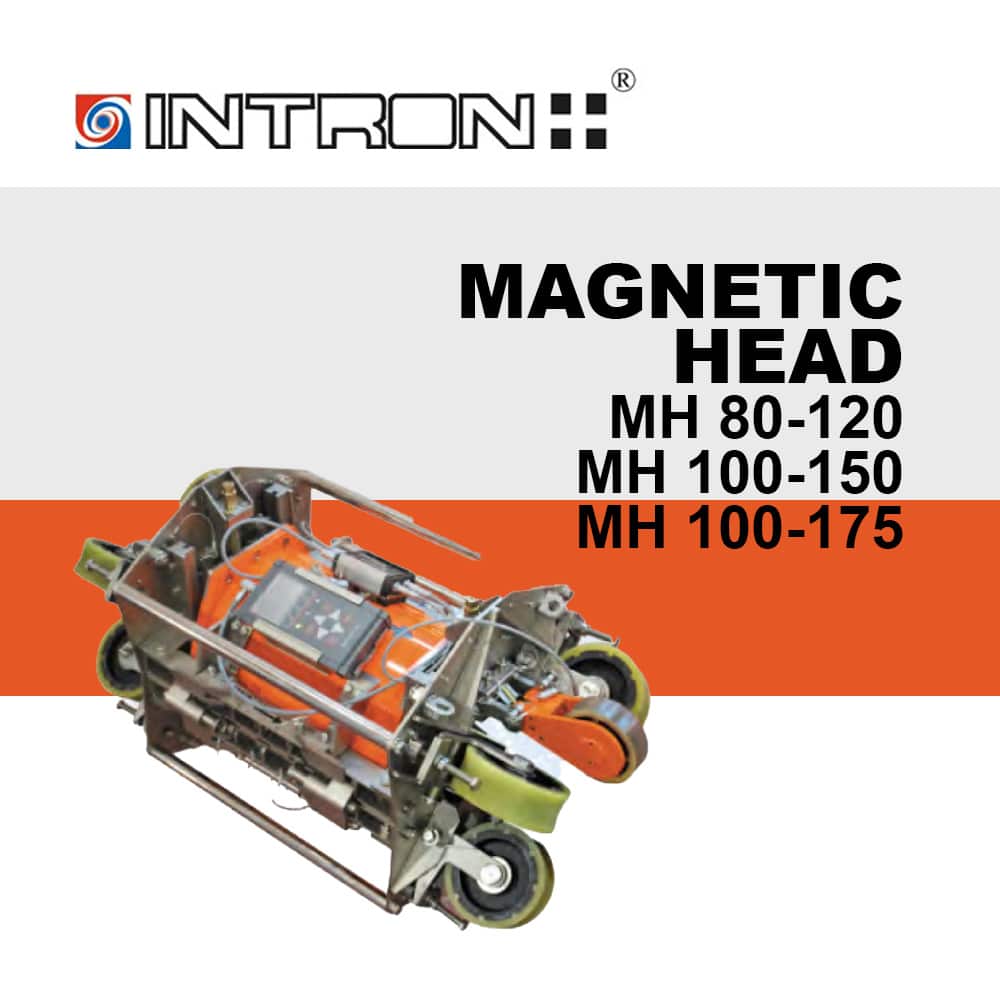

Magnetic Head MH80-120/100-150/100-175 have detachable sensors and a set of sleeves. These magnetic heads are installed on the rope with the roller system, and aligned on the rope with adjustable wheels.

Diameter of ropes: MH80-120 MH100-150 MH100-175	From 80 to 120 mm From 100 to 150 mm From 100 to 165 mm
Dimensions MH80-120 MH100-150 MH100-175	895x520x440 mm 950x550x490 mm 980x646x509 mm
Weight MH80-120 MH100-150 MH100-175	163 kg 220 kg 250 kg
Inspection speed: MH80-120/MH100-150 MH100-175	from 0.2 to 1.5 m/s from 0.02 to 1.5 m/s
Ambient temperature MH80-120/MH100-150 MH100-175	IP65 IP65
Inspection speed: MH80-120/MH100-150 MH100-175	from 0.2 to 1.5 m/s from 0.02 to 1.5 m/s
Ambient temprature	+10°….+50°C
